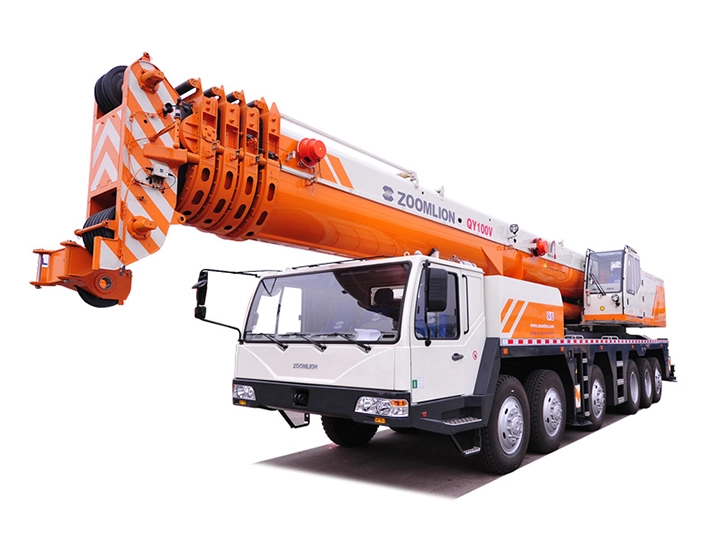

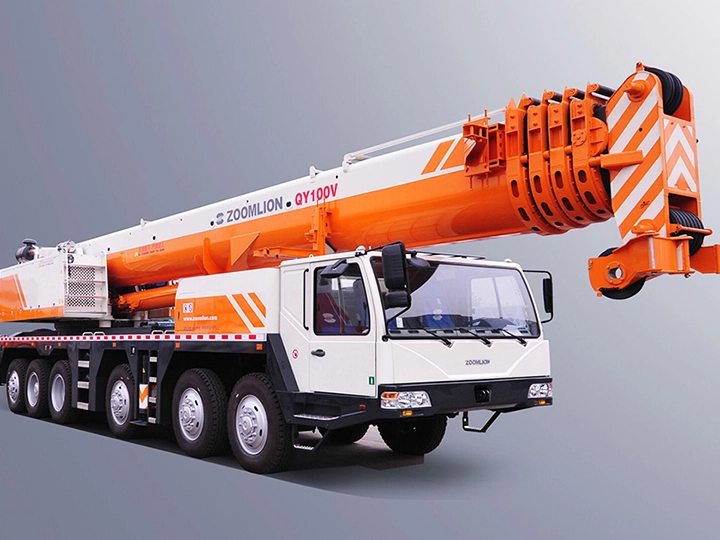

Zoomlion QY100V- 100 tấn

Thông số kỹ thuật

Outstanding lifting capacity
• Box-shaped boom sections in U-type boom profile of particular torsional rigidity are welded from imported high-tensile steel, providing light deadweight.
• Underslung self-handed multivariable counterweight system in a total weight of 36t.
• Boom:1 basic boom and 4 telescopic sections
　Max. load moment of basic boom:4312KN/m
　Max. boom length:56 m
　Max.lifting height:56.9m
　Jib: Max. Jib length (including one 8m extension): 26.6m
　Max.lifting height:82.9m
• Innovated flow converging & diverging technology for simultaneous, providing improved working efficiency.
• Boom luffing down under the action of its gravity, with excellent micro-positioning performance, smooth and energy saving.
• Counterweight attachable during driving (8t for normal driving and 10t for short-distance transit)
• Most of the OM can be fulfilled without additional ballast, thus to reduce operation cost for customers.
• Mature 6-axle special purpose chassis for truck crane
• Axles 1,2,3 and 6 are steered axles 3,5 and 6 are driven.
• BENZ electronic fuel injection diesel engine OM502LA(Max. output power:390kw at 1800rpm,max.torque:2400N.m at 1080rpm)
• Upgraded safety protection strategies.

Item		Unit	Value	Remarks
Working performance	Max. rated lifting capacity	kg	100000
	Max. load moment of basic boom	kN.m	4312	R5.5m,Q80T
	Max. load moment of max. length boom boom(fully extended)	kN.m	2371	R22m,Q11T
	Max. load moment of basic boom	m	15.8
	Max. lifting height of main boom	m	56.9	These parameters do not include deflection of main boom and jib
	Max. lifting height of jib	m	82.9
Working speeds	Max. hoist rope speed(Main winch)	m/min	115	At the 4th layer
	Max. hoist rope speed(Auxiliary winch)	m/min	75	At the 2nd layer
	Boom luffing up time	s	85
	Boom extending time	s	150
	Slewing speed	r/min	0 - 1.6
Driving parameters	Max. driving speed	km/h	75
	Max. gradeability	%	40
	Turning diameter	m	≤24
	Min. ground clearance	mm	325
	Oil consumption per hundred kilometers	L	85
Mass	Deadweight in driving condition	kg	66000
	Complete vehicle kerb mass	kg	65870
	Front axle load	kg	10000+10000+10000
	Rear axle load	kg	13000+13000+10000
Dimensions	Overall dimensions(L×W×H)	mm	16500×3000×3950
	Outrigger spread(L)	m	8.35
	Outrigger spread(W)	m	Fully extended:7.80, Intermediately extended:5.3
	Tail slewing radius	mm	4700
	Main boom length	m	14.6 - 56
	Boom angle	°	-1.5 - 82
	jib length	m	11、18.6、26.6	8 m jib extension(optional)
	Offset	°	0、30
