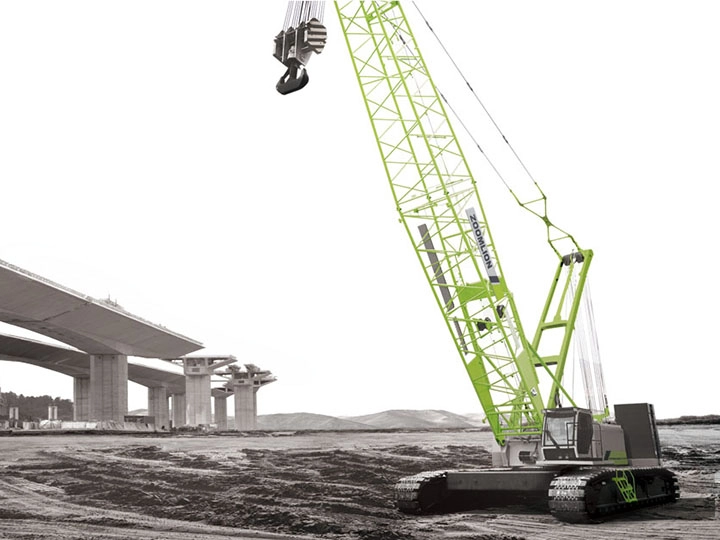

Zoomlion QUY260 - 260 tấn
Thông số kỹ thuật
| Item | Unit | Value | Remarks | |
|---|---|---|---|---|
| Maximum lifting capacity × radius | t × m | 260 × 5 | ||
| Deadweight of crane with basic boom | t | 210 | ||
| Length of main boom | m | 20-83 | ||
| Length of light duty boom | m | 86-95 | ||
| Length of fixed jib | m | 12-30 | ||
| Maximum lifting capacity with fixed jib | t | 34 | ||
| Fixed jib angle | 。 | 10,30 | ||
| Maximum length of main boom + fixed jib | m | 77+30 | ||
| Length of luffing jib | m | 21-60 | ||
| Maximum lifting capacity with luffing jib | t | 73.5 | ||
| Working angle of main boom in crane operation with luffing jib | 。 | 85,75,65 | ||
| Maximum length of main boom + luffing jib | m | 62+60 | Length of main boom 38-56 | |
| Single rope speed of winches | Main hoisting winch(hoisting winch 1) | m/min | 110 | Sixth layer of drum |
| Auxiliary hoisting Winch(hosting winch 2)) | m/min | 110 | Sixth layer of drum | |
| Main boom derricking winch | m/min | 29×2 | Fifth layer of drum | |
| Luffing jib derricking winch | m/min | 46 | Sixth layer of drum | |
| Slewing speed | rpm | 0~1.2 | ||
| Traveling speed | km/h | 0~1.0 | ||
| Gradeability | % | 30 | ||
| Ground pressure | MPa | 0.115 | ||
| Overall dimensions(L × W × H) | m | 10.9×7.6×3.3 | Without A-frame and boom frame | |
| Engine | Manufacturer | Cummins(USA) | ||
| Rated power/rotational speed | Kw/rpm | 227/2000 | ||
| Max. output torque/rotational speed | Nm/rpm | 1505/1400 | ||
| Exhaust emission standard | U.S.EPA Tier 3 and EU Stage 3 | |||
| Distance between track center × crawler contact length × crawler shoe width | mm | 6400×8000×1200 | ||
