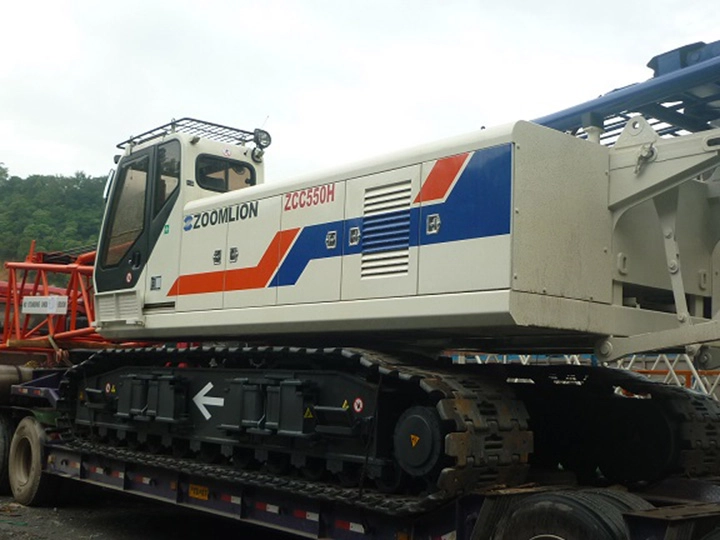

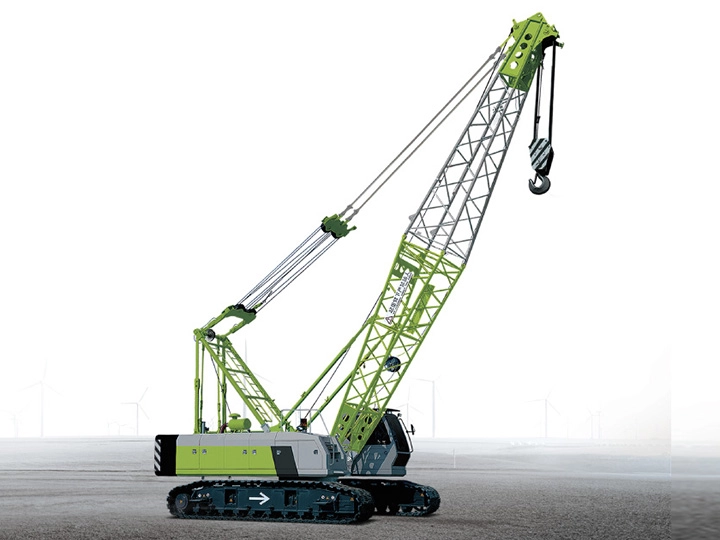

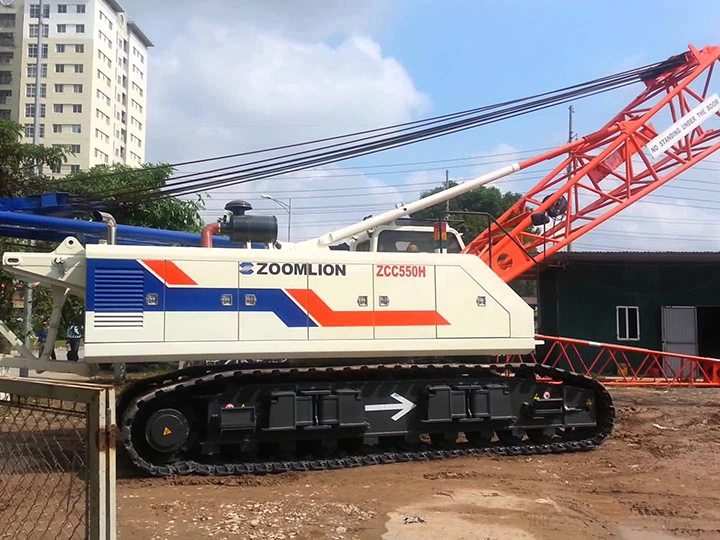

Zoomlion ZCC550H - 55 tấn

Item			Unit	Value	Remarks
Max. lifting capacity × radius			t × m	55×3.7
Max. lifting capacity on fixed jib			t	5.5
Max. lifting capacity of luffing jib			t	12
Main boom length			m	13 - 52
Fixed jib length			m	6 - 15
Max. length of main boom with fixed jib			t	43+15
Luffing jib length			m	16m-28m
Max. main boom +max. luffing jib			m	40mm+28mm
Derricking angle			。	30 - 80
Fixed jib angle			。	10,30
Max. rope speed of winches		Hoisting winch 1	m/min	125/100	With optional free-fall function
		Hoisting winch 2		125
		Derricking winch		80
Slewing speed			rpm	0-2.1
Traveling speed			km/h	0-1.6
Max. gradeability			%	30	With basic boom and counterweight over front
Ground pressure			Mpa	0.068
Deadweight			t	50.5	With basic boom
Crane counterweight			t	17.5
Overall dimensions(L × W × H)			m	12800×4600(3300)×3120	With A-frame and main boom pivot section
Engine		Model		WP6G190E301	Manufacturer:Weichai Power CO, Ltd.
		Rated power / rotational speed	kW/r/min	140/1900
		Max. output torque /rotational speed	Nm/r/min	830/1300
		Exhaust emission		National StageⅡ
Distance between track center × crawler contact length × crawler width			mm	2540 ×5000×760	Crawler carrier retracted
			mm	3840 ×5000×760	Crawler carrier extended
Noise	Noise level outside operator’s cab during operation		(dB)	≤107
Noise	Noise level in operator’s cab during operation		(dB)	≤85
